Convert multidimensional data between different formats, and subset

Source: R/RcppExports.R
mdim_translate.Rd

mdim_translate() is an interface to the gdalmdimtranslate command-line utility (see https://gdal.org/en/stable/programs/gdalmdimtranslate.html). This function converts multidimensional data between different formats and performs subsetting. Requires GDAL >= 3.2.

Usage

mdim_translate(
  src_dsn,
  dst_dsn,
  output_format = "",
  creation_options = NULL,
  array_specs = NULL,
  group_specs = NULL,
  subset_specs = NULL,
  scaleaxes_specs = NULL,
  allowed_drivers = NULL,
  open_options = NULL,
  strict = FALSE,
  quiet = FALSE
)

Arguments

src_dsn

Character string giving the name of the source multidimensional raster dataset (e.g., file, VSI path).

dst_dsn

Character string giving the name of the destination multidimensional raster dataset (e.g., file, VSI path).

output_format

Character string giving the output format (driver short name). This can be a format that supports multidimensional output (such as NetCDF: Network Common Data Form, Multidimensional VRT), or a "classic" 2D format, if only one single 2D array results from the other specified conversion operations. When this option is not specified (i.e., empty string ""), the format is guessed when possible from the extension of dst_dsn.

creation_options

Optional character vector of format-specific creation options as "NAME=VALUE" pairs. A list of options supported for a format can be obtained with getCreationOptions(), but the documentation for the format is the definitive source of information on driver creation options (see https://gdal.org/en/stable/drivers/raster/index.html). Array-level creation options may be passed by prefixing them with ARRAY: (see Details).

array_specs

Optional character vector of one or more array specifications, instead of converting the whole dataset (see Details).

group_specs

Optional character vector of one or more array specifications, instead of converting the whole dataset (see Details).

subset_specs

Optional character vector of one or more subset specifications, that perform trimming or slicing along a dimension, provided that it is indexed by a 1D variable of numeric or string data type, and whose values are monotonically sorted (see Details).

scaleaxes_specs

Optional character string for a scale-axes specification, that apply an integral scale factor to one or several dimensions, i.e., extract 1 value every N values (without resampling) (see Details).

allowed_drivers

Optional character vector of driver short names that must be considered when opening src_dsn. It is generally not necessary to specify it, but it can be used to skip automatic driver detection, when it fails to select the appropriate driver.

open_options

Optional character vector of format-specific dataset open options for src_dsn as "NAME=VALUE" pairs.

strict

Logical value, FALSE (the default) some failures during the translation are tolerated, such as not being able to write group attributes. If set to TRUE, such failures will cause the process to fail.

quiet

Logical value, set to TRUE to disable progress reporting. Defaults to FALSE.

Value

Logical value indicating success (invisible TRUE, output written to dst_dsn). An error is raised if the operation fails.

Details

Array creation options

Array creation options must be prefixed with ARRAY:. The scope may be further restricted to arrays of a certain dimension by adding IF(DIM={ndims}): after ARRAY:. For example, "ARRAY:IF(DIM=2):BLOCKSIZE=256,256" will restrict BLOCKSIZE=256,256 to arrays of dimension 2. Restriction to arrays of a given name is done with adding IF(NAME={name}): after ARRAY:. {name} can also be a fully qualified name. A non-driver specific array option, "AUTOSCALE=YES" can be used to ask (non indexing) variables of type Float32 or Float64 to be scaled to UInt16 with scale and offset values being computed from the minimum and maximum of the source array. The integer data type used can be set with "AUTOSCALE_DATA_TYPE=Byte|UInt16|Int16|UInt32|Int32".

array_specs

Instead of converting the whole dataset, select one or more arrays, and possibly perform operations on them. One or more array specifications can be given as elements of a character vector.

An array specification may be just an array name, potentially using a fully qualified syntax ("/group/subgroup/array_name"). Or it can be a combination of options with the syntax:

"name={src_array_name}[,dstname={dst_array_name}][,resample=yes][,transpose=[{axis1},{axis2},...][,view={view_expr}]"

The following options are processed in that order:

  • resample=yes asks for the array to run through GDALMDArray::GetResampled().

  • [{axis1},{axis2},...] is the argument of GDALMDArray::Transpose(). For example, transpose=[1,0] switches the axis order of a 2D array.

  • {view_expr} is the value of the viewExpr argument of GDALMDArray::GetView(). When specifying a view_expr that performs a slicing or subsetting on a dimension, the equivalent operation will be applied to the corresponding indexing variable. See ?mdim_as_classic for details on view expressions.

group_specs

Instead of converting the whole dataset, select one or more groups, and possibly perform operations on them. One or more group specifications can be given in a character vector, to operate on different groups. If only one group is specified, its content will be copied directly to the target root group. If several are specified, they are copied under the target root group.

A group specification may be just a group name, potentially using a fully qualified syntax ("/group/subgroup/subsubgroup_name"). Or it can be a combination of options with the syntax:

"name={src_group_name}[,dstname={dst_group_name}][,recursive=no]"

subset_specs

Perform subsetting (trimming or slicing) operations along dimensions, provided that the dimension is indexed by a 1D variable of numeric or string data type, and whose values are monotonically sorted. One or more subset specifications can be given in a character vector. A subset specification string follows exactly the OGC WCS 2.0 KVP encoding for subsetting.

Syntax is "dim_name(min_val,max_val)" or "dim_name(sliced_val)". The first syntax will subset the dimension dim_name to values in the [min_val,max_val] range. The second syntax will slice the dimension dim_name to value sliced_val (and this dimension will be removed from the arrays that reference to it)

Using a subset specification is incompatible with specifying a view option in array_specs.

scaleaxes_specs

Applies an integral scale factor to one or several dimensions, i.e., extract 1 value every N values (without resampling). A scale-axes specification string follows exactly the syntax of the KVP encoding of the SCALEAXES parameter of OGC WCS 2.0 Scaling Extension, but limited to integer scale factors.

Syntax is a character string of the form:

"<dim1_name>(<scale_factor>)[,<dim2_name>(<scale_factor>)]..."

Using a scale-axes specification is incompatible with specifying a view option in array_specs.

See also

mdim_as_classic(), mdim_info()

Examples

f_src <- system.file("extdata/byte.nc", package="gdalraster")

## COMPRESS option for MDArray creation
opt <- NULL
if (isTRUE(gdal_get_driver_md("netCDF")$NETCDF_HAS_NC4 == "YES")) {
  # 4 x 4 is for illustration only, the sample dataset is only 20 x 20
  opt <- c("ARRAY:IF(DIM=2):BLOCKSIZE=4,4",
           "ARRAY:IF(NAME=Band1):COMPRESS=DEFLATE",
           "ARRAY:ZLEVEL=6")
}

f_dst <- tempfile(fileext = ".nc")
mdim_translate(f_src, f_dst, creation_options = opt)
#> 0...10...20...30...40...50...60...70...80...90...100 - done.
info <- mdim_info(f_dst, cout = FALSE) |> yyjsonr::read_json_str()
# str(info)
info$structural_info
#> $NC_FORMAT
#> [1] "NETCDF4"
#>
info$arrays$Band1$block_size
#> [1] 4 4
info$arrays$Band1$structural_info
#> $COMPRESS
#> [1] "DEFLATE"
#>

(ds <- mdim_as_classic(f_dst, "Band1", 1, 0))
#> C++ object of class GDALRaster
#>  Driver :
#>  DSN    :
#>  Dim    : 20, 20, 1
#>  CRS    : NAD27 / UTM zone 11N (EPSG:26711)
#>  Res    : 60.000000, 60.000000
#>  Bbox   : 440720.000000, 3750120.000000, 441920.000000, 3751320.000000

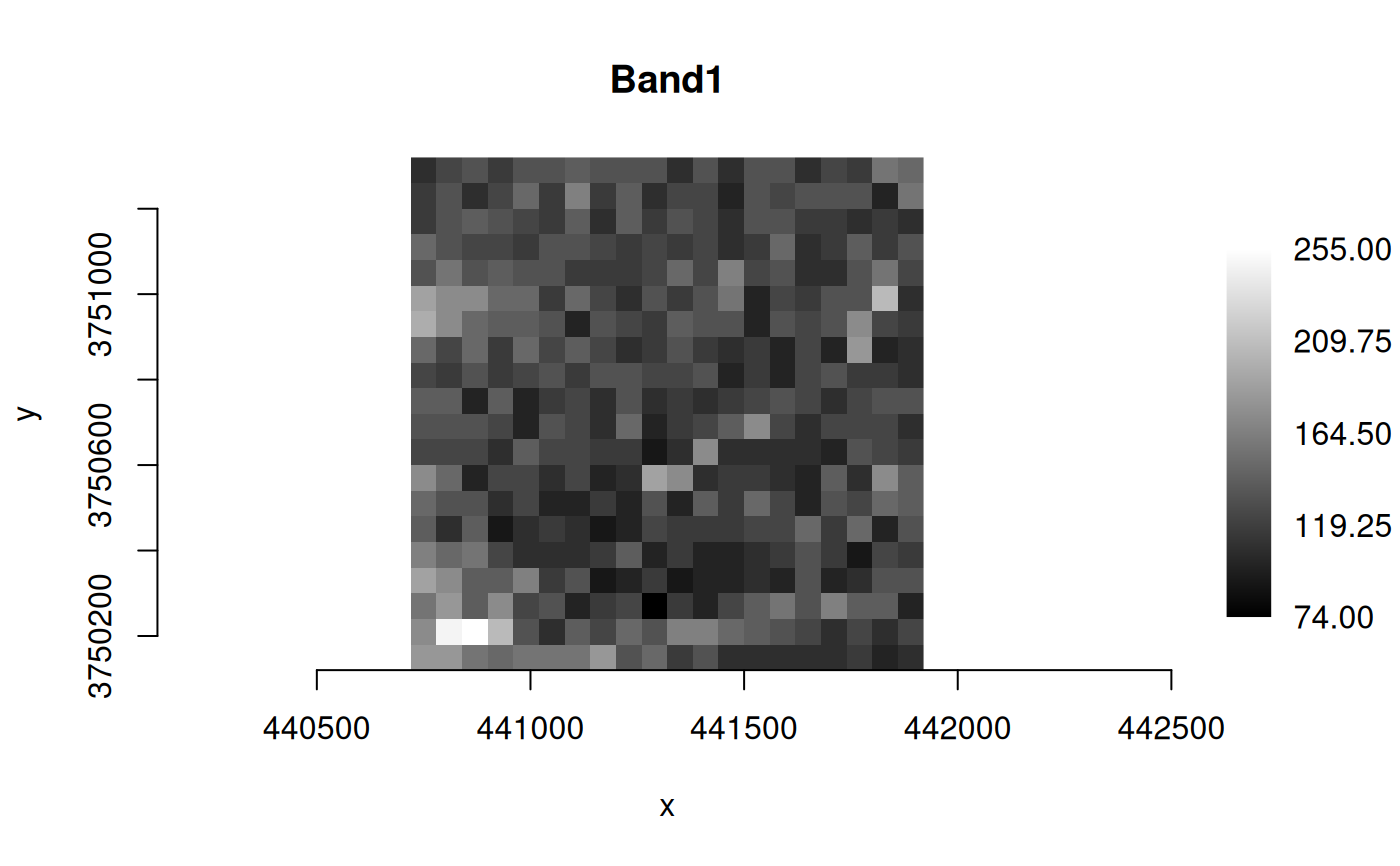

plot_raster(ds, interpolate = FALSE, legend = TRUE, main = "Band1")


ds$close()

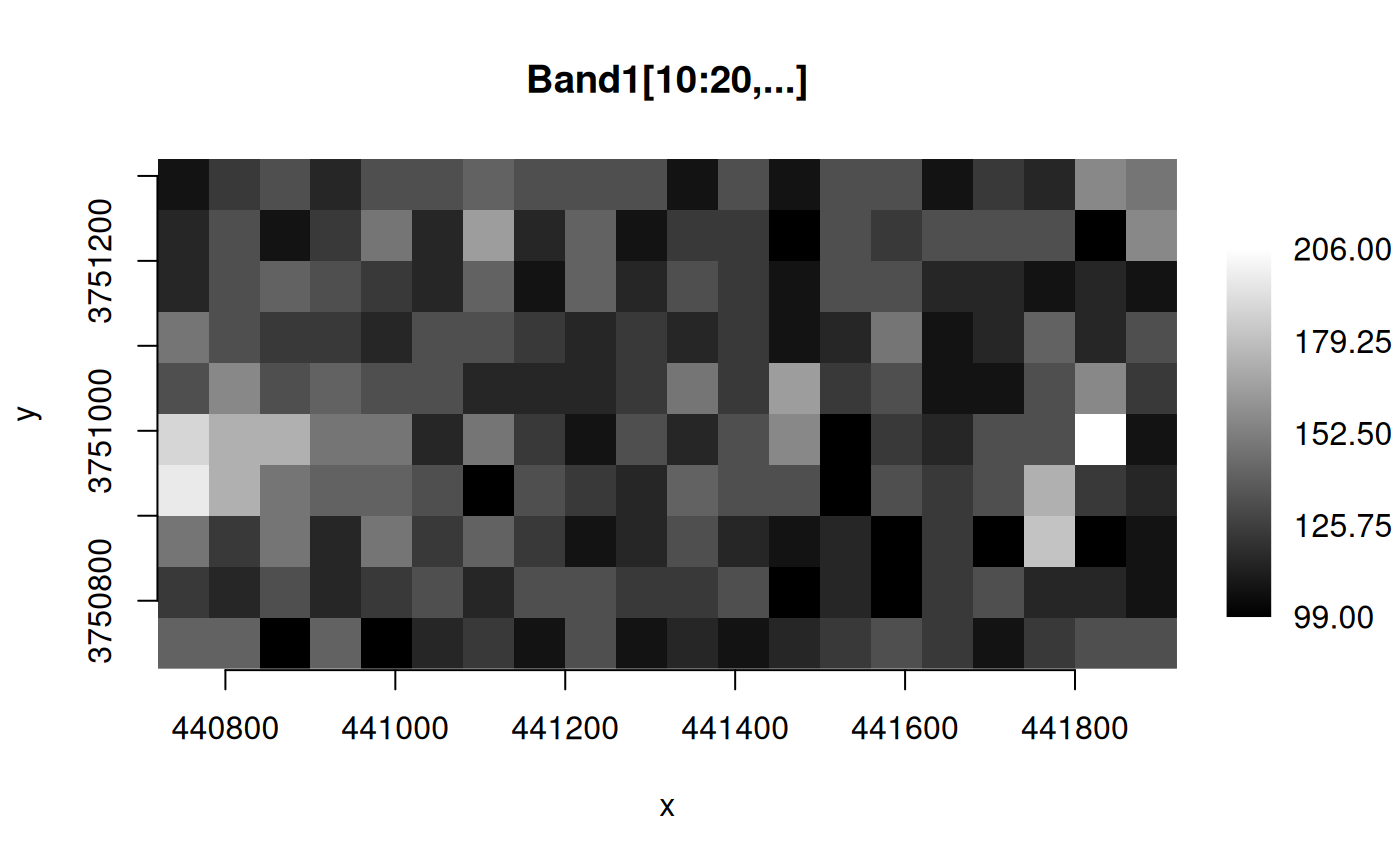

## slice along the Y axis with array view
f_dst2 <- tempfile(fileext = ".nc")
mdim_translate(f_src, f_dst2, array_specs = "name=Band1,view=[10:20,...]")
#> 0...10...20...30...40...50...60...70...80...90...100 - done.
(ds <- mdim_as_classic(f_dst2, "Band1", 1, 0))
#> C++ object of class GDALRaster
#>  Driver :
#>  DSN    :
#>  Dim    : 20, 10, 1
#>  CRS    : NAD27 / UTM zone 11N (EPSG:26711)
#>  Res    : 60.000000, 60.000000
#>  Bbox   : 440720.000000, 3750720.000000, 441920.000000, 3751320.000000

plot_raster(ds, interpolate = FALSE, legend = TRUE,
            main = "Band1[10:20,...]")


ds$close()

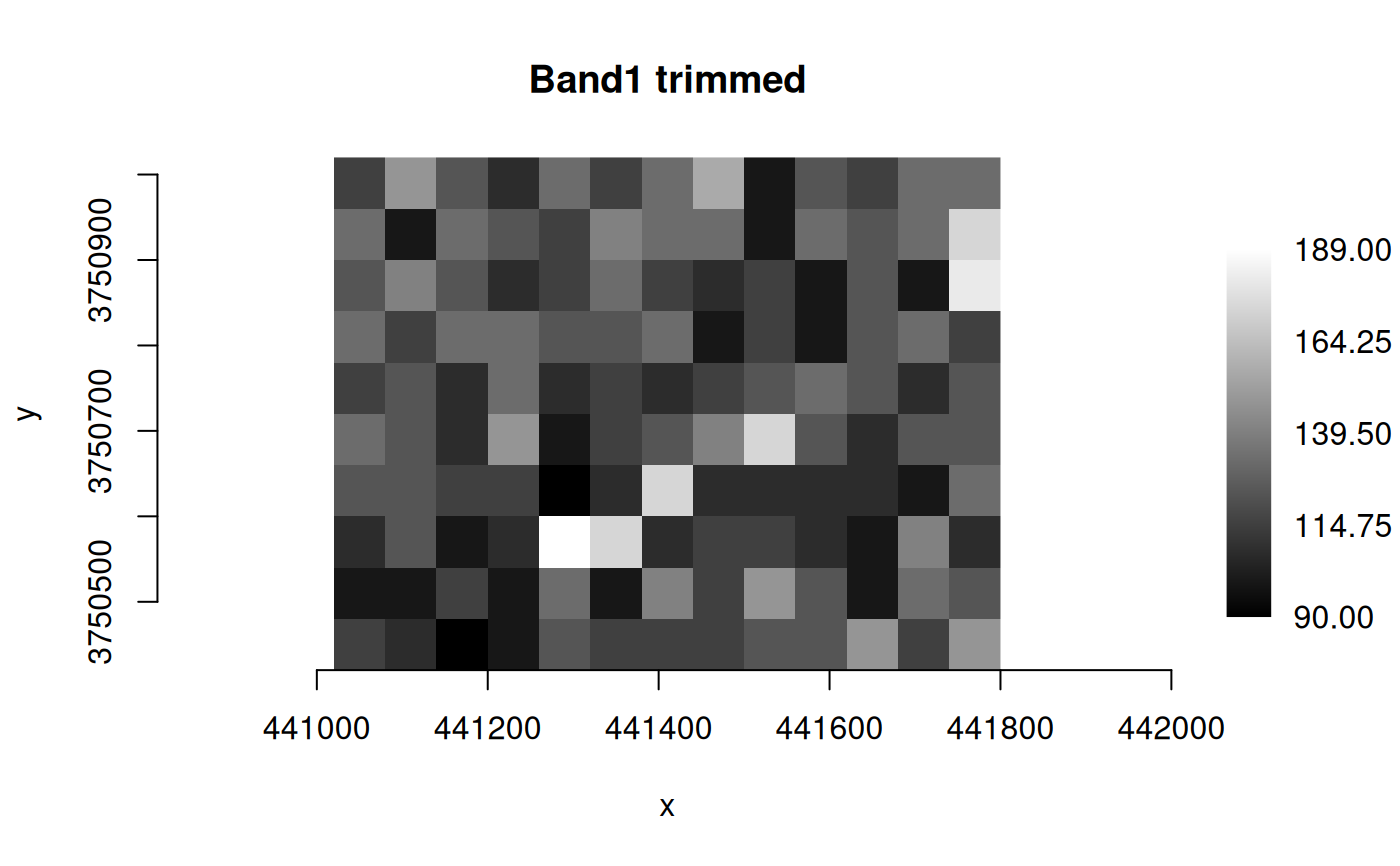

## trim X and Y by subsetting
f_dst3 <- tempfile(fileext = ".nc")
subsets <- c("x(441000,441800)", "y(3750400,3751000)")
mdim_translate(f_src, f_dst3, subset_specs = subsets)
#> 0...10...20...30...40...50...60...70...80...90...100 - done.
(ds <- mdim_as_classic(f_dst3, "Band1", 1, 0))
#> C++ object of class GDALRaster
#>  Driver :
#>  DSN    :
#>  Dim    : 13, 10, 1
#>  CRS    : NAD27 / UTM zone 11N (EPSG:26711)
#>  Res    : 60.000000, 60.000000
#>  Bbox   : 441020.000000, 3750420.000000, 441800.000000, 3751020.000000

plot_raster(ds, interpolate = FALSE, legend = TRUE,
            main = "Band1 trimmed")


ds$close()

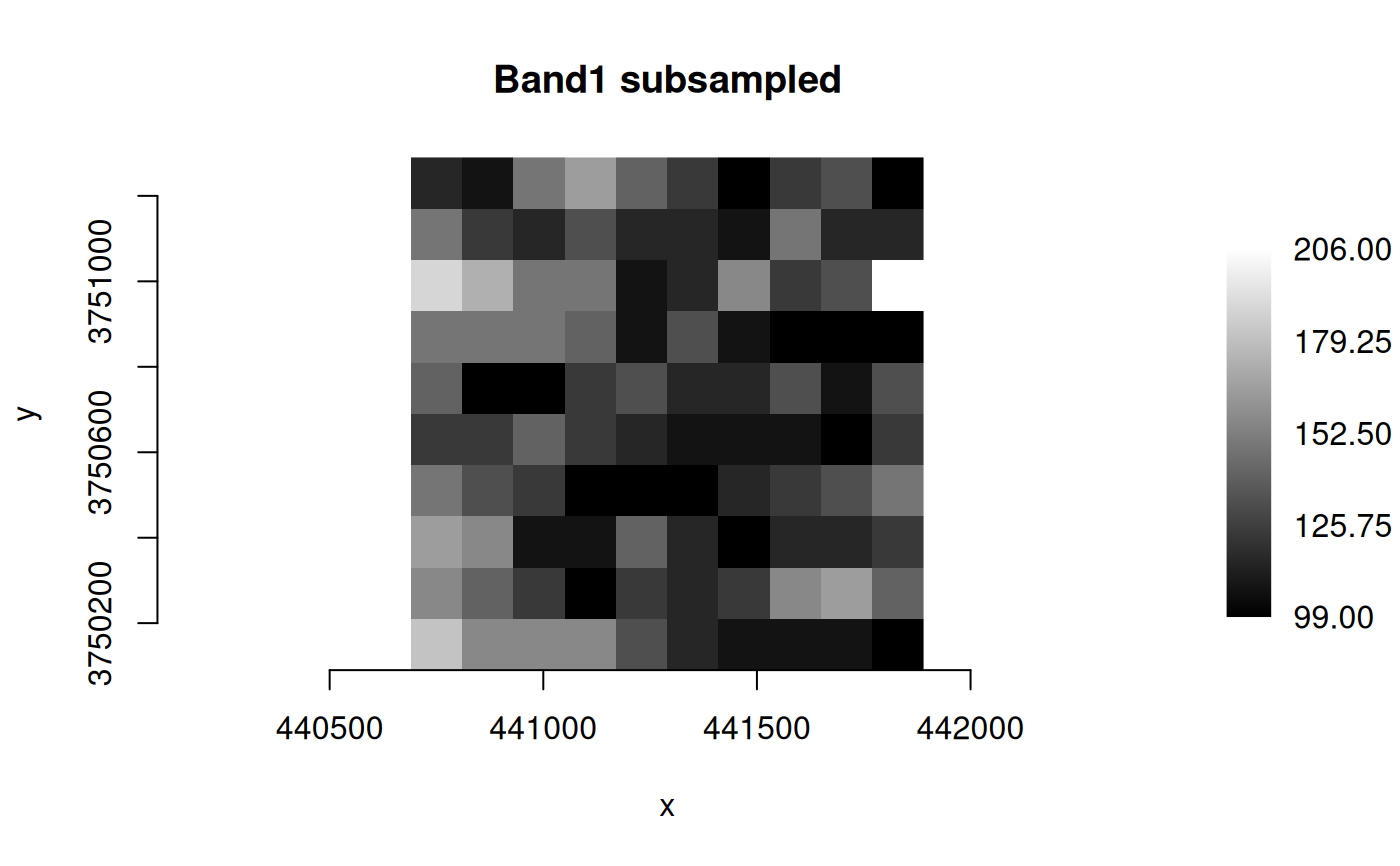

## subsample along X and Y
f_dst4 <- tempfile(fileext = ".nc")
mdim_translate(f_src, f_dst4, scaleaxes_specs = "x(2),y(2)")
#> 0...10...20...30...40...50...60...70...80...90...100 - done.
(ds <- mdim_as_classic(f_dst4, "Band1", 1, 0))
#> C++ object of class GDALRaster
#>  Driver :
#>  DSN    :
#>  Dim    : 10, 10, 1
#>  CRS    : NAD27 / UTM zone 11N (EPSG:26711)
#>  Res    : 120.000000, 120.000000
#>  Bbox   : 440690.000000, 3750090.000000, 441890.000000, 3751290.000000

plot_raster(ds, interpolate = FALSE, legend = TRUE,
            main = "Band1 subsampled")


ds$close()
