Return a view of an MDArray as a "classic" GDALDataset (i.e., 2D)

Source: R/gdal_mdim.R
mdim_as_classic.Rd

mdim_as_classic() returns a 2D raster view on an MDArray in a GDAL Multidimensional Raster dataset, as an object of class GDALRaster. Only 2D or more arrays are supported. In the case of > 2D arrays, additional dimensions will be represented as raster bands. Requires GDAL >= 3.2.

Usage

mdim_as_classic(
  dsn,
  array_name,
  idx_xdim,
  idx_ydim,
  read_only = TRUE,
  group_name = NULL,
  view_expr = NULL,
  allowed_drivers = NULL,
  open_options = NULL
)

Arguments

dsn

Character string giving the data source name of the multidimensional raster (e.g., file, VSI path).

array_name

Character string giving the name of the MDarray in dsn.

idx_xdim

Integer value giving the index of the dimension that will be used as the X/width axis (0-based).

idx_ydim

Integer value giving the index of the dimension that will be used as the Y/height axis (0-based).

read_only

Logical value, TRUE to open the dataset in read-only mode (the default).

group_name

Optional character string giving the fully qualified name of a group containing array_name.

view_expr

Optional character string giving an expression for basic array slicing and indexing, or field access (see section View Expressions).

allowed_drivers

Optional character vector of driver short names that must be considered. By default, all known multidimensional raster drivers are considered.

open_options

Optional character vector of format-specific dataset open options as "NAME=VALUE" pairs.

Value

An object of class GDALRaster.

Note

The indexing of array dimensions is 0-based consistent with the <ARRAY-SPEC> notation that may be used with GDAL CLI commands, e.g., gdal_usage("mdim convert") (CLI bindings require GDAL > 3.11.3). See https://gdal.org/en/stable/programs/gdal_mdim_convert.html.

Once the returned GDALRaster object has been closed, it cannot be re-opened with its $open() method.

View Expressions

A character string can be passed in argument view_expr to specify array slicing or field access. The slice expression uses the same syntax as NumPy basic slicing and indexing (0-based), or it can use field access by name. See https://numpy.org/doc/stable/user/basics.indexing.html.

GDAL support for view expression on an MDArray is documented for GDALMDArray::GetView() (see https://gdal.org/en/stable/api/gdalmdarray_cpp.html) and copied here:

Multiple [] bracket elements can be concatenated, with a slice expression or field name inside each.

For basic slicing and indexing, inside each [] bracket element, a list of indexes that apply to successive source dimensions, can be specified, using integer indexing (e.g. 1), range indexing (start:stop:step), ellipsis (...) or newaxis, using a comma separator.

Example expressions with a 2-dimensional array whose content is [[0,1,2,3],[4,5,6,7]].

  • "[1][2]": returns a 0-dimensional/scalar array with the value at index 1 in the first dimension, and index 2 in the second dimension from the source array. That is, 5.

  • "[1,2]": same as above, but a bit more performant.

  • "[1]": returns a 1-dimensional array, sliced at index 1 in the first dimension. That is [4,5,6,7].

  • "[:,2]": returns a 1-dimensional array, sliced at index 2 in the second dimension. That is [2,6].

  • "[:,2:3:]": returns a 2-dimensional array, sliced at index 2 in the second dimension. That is [[2],[6]].

  • "[::,2]": Same as above.

  • "[...,2]": same as above, in that case, since the ellipsis only expands to one dimension here.

  • "[:,::2]": returns a 2-dimensional array, with even-indexed elements of the second dimension. That is [[0,2],[4,6]].

  • "[:,1::2]": returns a 2-dimensional array, with odd-indexed elements of the second dimension. That is [[1,3],[5,7]].

  • "[:,1:3:]": returns a 2-dimensional array, with elements of the second dimension with index in the range [1,3]. That is [[1,2],[5,6]].

  • "[::-1,:]": returns a 2-dimensional array, with the values in first dimension reversed. That is [[4,5,6,7],[0,1,2,3]].

  • "[newaxis,...]": returns a 3-dimensional array, with an additional dimension of size 1 put at the beginning. That is [[[0,1,2,3],[4,5,6,7]]].

One difference with NumPy behavior is that ranges that would result in zero elements are not allowed (dimensions of size 0 not being allowed in the GDAL multidimensional model).

For field access, the syntax to use is "['field_name']". Multiple field specification is not supported currently. Both type of access can be combined, e.g. "[1]['field_name']".

See also

GDALRaster-class, mdim_info(), mdim_translate()

Examples

f <- system.file("extdata/byte.nc", package="gdalraster")
# mdim_info(f)

(ds <- mdim_as_classic(f, "Band1", 1, 0))
#> C++ object of class GDALRaster
#>  Driver :
#>  DSN    :
#>  Dim    : 20, 20, 1
#>  CRS    : NAD27 / UTM zone 11N (EPSG:26711)
#>  Res    : 60.000000, 60.000000
#>  Bbox   : 440720.000000, 3750120.000000, 441920.000000, 3751320.000000

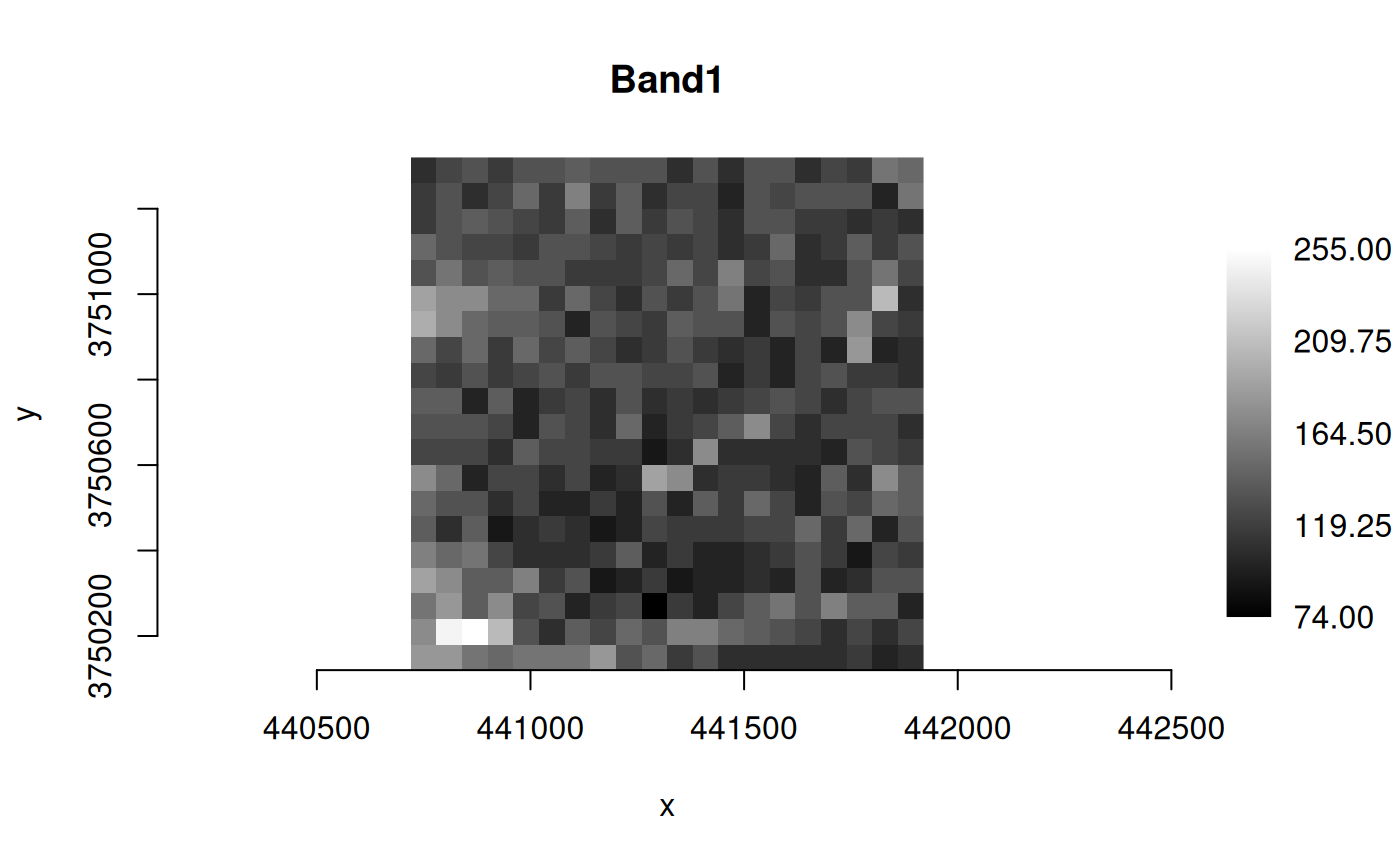

plot_raster(ds, interpolate = FALSE, legend = TRUE, main = "Band1")


ds$close()
